🔁 Impact Analysis Made Simple — Business-Friendly Reverse Lineage in Excel

03/10/2025  Â·  Data Architecture  Â·  Data Engineering  Â·  Data Modeling

‹ ›

When someone asks “What breaks if we change this?”, you shouldn’t need a graph UI and a magnifying glass. Reverse lineage + a tidy Excel is enough.

Why product owners need impact analysis

Changing a column, renaming a table, or altering a transformation shouldn’t feel risky. Yet most teams still debate the blast radius. Catalogs can show upstream/downstream graphs, but they’re not the fastest way for a product owner to answer:

Who consumes this field? Where will a change ripple?

Our approach from Article 1 — a lineage delivery layer in DuckDB — also solves impact analysis with one simple twist.

The one twist: reverse the join

Lineage (source → target) and impact (target → source) use the same recursive query and metadata. Just flip the mapping direction.

Lineage expands from current → children on source = current
Impact expands from current → parents on target = current

-- IMPACT (reverse): walk from a target upward to its sources
JOIN column_mapping cm
  ON cm.target_schema = w.to_schema
 AND cm.target_table  = w.to_table
 AND cm.target_column = w.to_column

Everything else stays the same:

  • depth for indent
  • order_key like 1.2.3 for perfect Excel sorting
  • a simple cycle guard (visited path)
Three tables with the middle one highlighted; arrows point back to its sources. A speech bubble asks: ‘Who breaks if we change this?’

Reverse Impact: highlight a changed field and follow arrows upstream to see who breaks.

Unified delivery table (both directions)

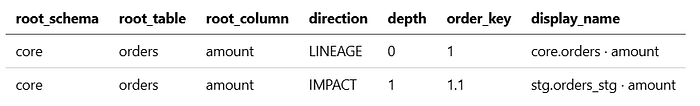

Keep one table (lineage_analysis) with a direction flag so business users can filter:

Press enter or click to view image in full size

In Excel:

  1. Filter direction = IMPACT
  2. Sort by order_key
  3. Scan display_name to see upstream dependencies
Laptop showing a spreadsheet with columns for root and order_key; indented rows visualize hierarchy.

ilter by _direction_, sort by _order_key_, and follow the indented _display_name_.

Ready-to-run SQL snippets

Seed a root (what you plan to change):

-- Example root we’re assessing
PRAGMA vardict_set('root_schema', 'core');
PRAGMA vardict_set('root_table',  'orders');
PRAGMA vardict_set('root_column', 'amount');

Reverse (IMPACT) traversal (column-level):

WITH RECURSIVE
seed AS (
  SELECT
    'COLUMN' AS root_kind,
    getvariable('root_schema') AS root_schema,
    getvariable('root_table')  AS root_table,
    getvariable('root_column') AS root_column,
    0 AS depth,
    '1' AS order_key,
    -- from == to at the root
    getvariable('root_schema') AS from_schema,
    getvariable('root_table')  AS from_table,
    getvariable('root_column') AS from_column,
    getvariable('root_schema') AS to_schema,
    getvariable('root_table')  AS to_table,
    getvariable('root_column') AS to_column,
    CONCAT_WS('.', getvariable('root_schema'), getvariable('root_table'), getvariable('root_column')) AS visited
),
walk AS (
  SELECT * FROM seed
  UNION ALL
  SELECT
    w.root_kind, w.root_schema, w.root_table, w.root_column,
    w.depth + 1 AS depth,
    w.order_key || '.' ||
      CAST(ROW_NUMBER() OVER (
        PARTITION BY w.order_key
        ORDER BY cm.source_schema, cm.source_table, cm.source_column
      ) AS TEXT) AS order_key,
    -- reverse edge: from current node to upstream sources
    cm.target_schema, cm.target_table, cm.target_column,
    cm.source_schema, cm.source_table, cm.source_column,
    w.visited || '>' || CONCAT_WS('.', cm.source_schema, cm.source_table, cm.source_column)
  FROM walk w
  JOIN column_mapping cm
    ON cm.target_schema = w.to_schema
   AND cm.target_table  = w.to_table
   AND cm.target_column = w.to_column
  WHERE INSTR(w.visited, CONCAT_WS('.', cm.source_schema, cm.source_table, cm.source_column)) = 0
    AND w.depth < 50
)
INSERT INTO lineage_analysis
SELECT
  root_kind, root_schema, root_table, root_column,
  'IMPACT' AS direction, depth, order_key,
  from_schema, from_table, from_column,
  to_schema,   to_table,   to_column
FROM walk
ORDER BY order_key;

Swap the join (source = current) to compute forward LINEAGE.

Bulk-run for many roots (nightly job)

Pseudocode using DuckDB Python API

run_id = make_run_id()
all_cols = con.execute("""
  SELECT DISTINCT s, t, c
  FROM (
    SELECT source_schema s, source_table t, source_column c FROM column_mapping
    UNION
    SELECT target_schema, target_table, target_column FROM column_mapping
  )
""").fetchall(
for s, t, c in all_cols:
    run_column_walk(con, s, t, c, "LINEAGE", run_id)
    run_column_walk(con, s, t, c, "IMPACT",  run_id)
# Export a single XLSX, sorted by root + direction + order_key

Automate this in CI/CD and drop the XLSX to SharePoint/Teams for product owners.

Practical reading patterns for business users

  • Change risk: filter direction = IMPACT, search for the field you plan to change, and review the first two depth levels.
  • Dependency discovery: sort on order_key, collapse by depth, and skim display_name.
  • Environment differences: add an env column to compare dev/test/prod impact side-by-side.

Wrap-up

Reverse lineage is the same engine as forward lineage — just point it upstream. By exporting a single, filterable Excel with direction, depth, and order_key, product owners can self-serve impact analysis without hopping into a graph.
